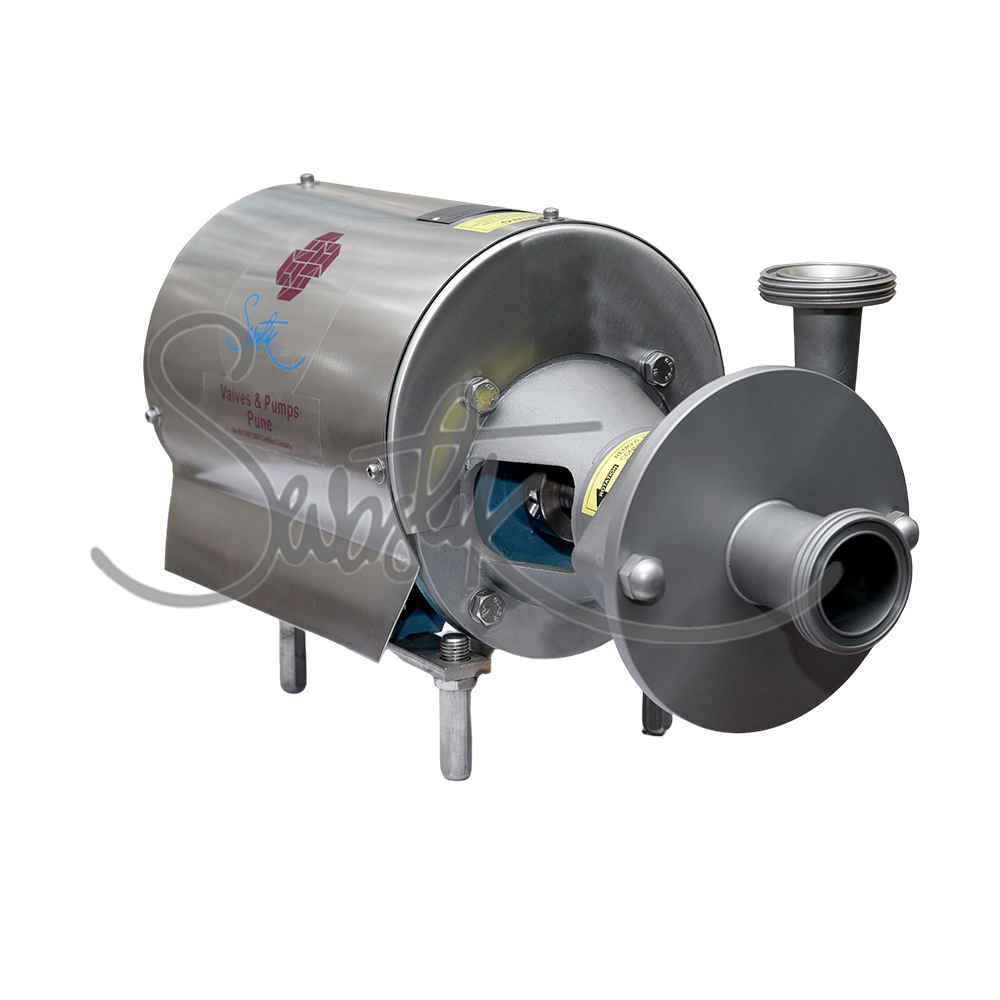

TECHNICAL DETAILS (2HP X 3PH SHEAR PUMP)

Suction: 51 SMS (As Per Requirements)
Discharge: 51 SMS (As Per Requirements)
Connection Type: SMS Union / Tcl END/ Flange END
Product Wetted Parts MOC: AISI 316
Other Parts MOC: All Parts In SS 304
Seal Type: Single Mechanical Shaft Seal / Double Mechanical Shaft Seal
Seal Combination: TC/TC/V, SIC/SIC/V, SS/C/V
Impeller Type: Open Type (Dynamically Balanced)
Motor Make: Any Reputed
Motor Drive Detail: 3 HP (2900 RPM) 3 Phase, Foot Cum Flange, Volt 415 V + 10%  Motor Insulation ‘f’ Class, Frequency 50 Hz, IP – 55
Pole: 2 Poles
Finish: Product Contact Surface Polished 180 Grit
Mounting: SS Leg With Adjustable Ball Feet With SS Shroud
