APPLICATION

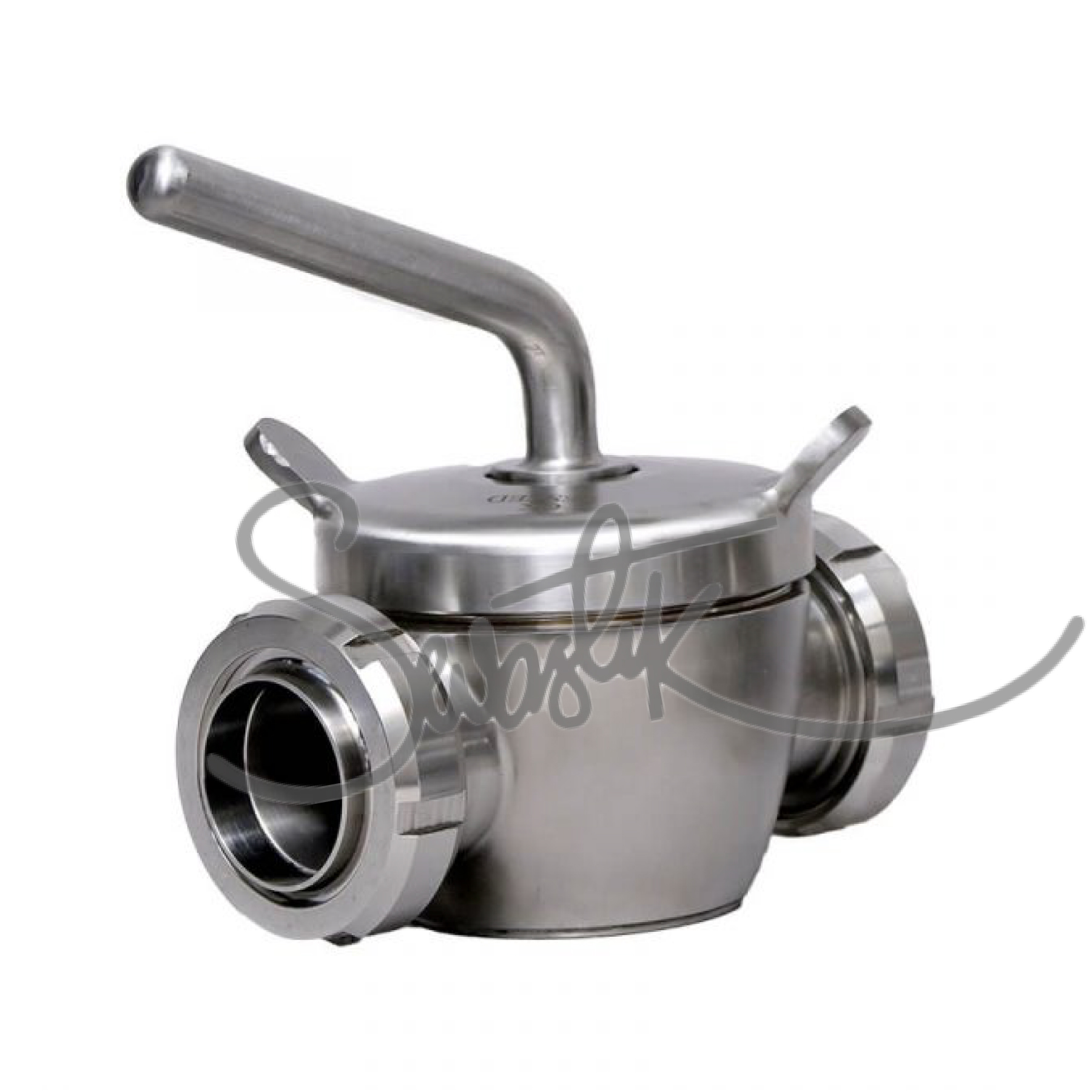

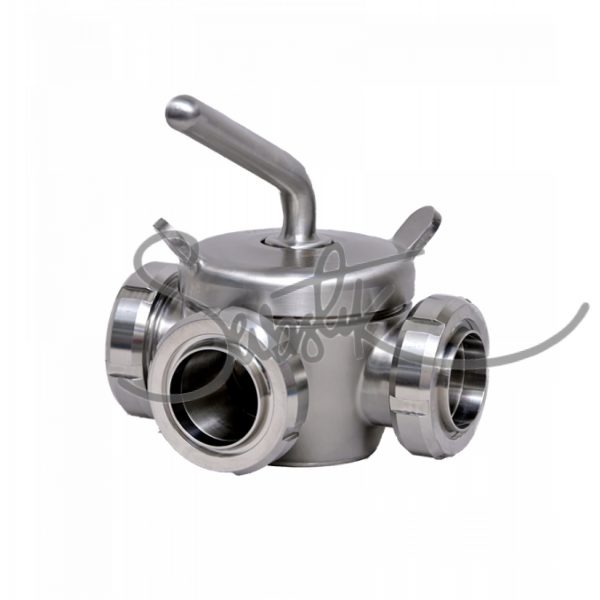

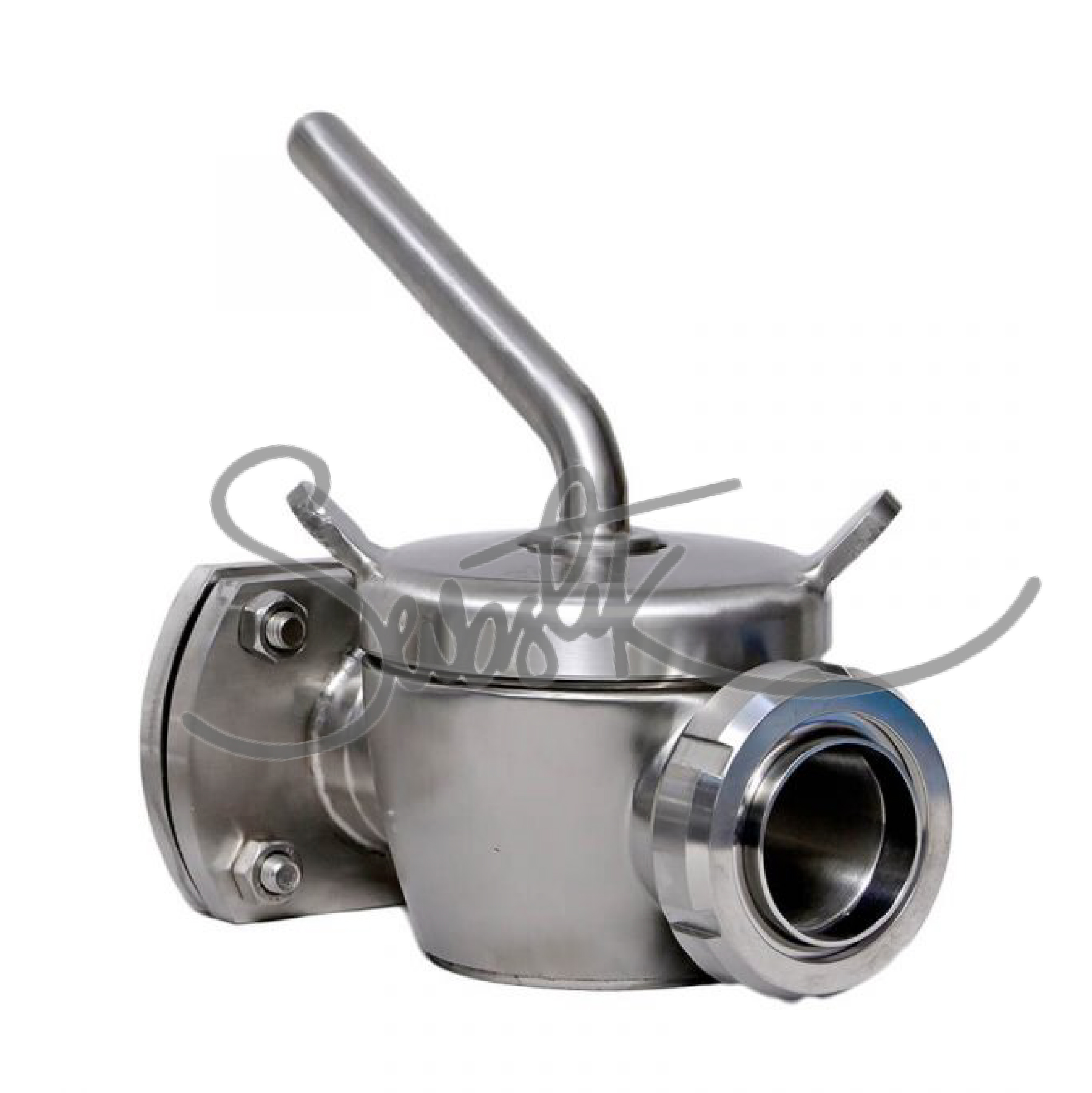

The Stainless Steel plug valve is used in Dairy & Food Processing Industries & where the most streingent hygienic requirement  & closing device with minimum pressure  drop.

STANDARD DESIGN & FEATURES

• The plug valve is design for quick & easy operations. The plug has a circular bore & conical shape. The Plug body & conical plug is lapped with each other. Plug valve is provided with ‘O’ rings ensuring that no leakage & screw cap is only tightened.
• Fully Machined components in AISI 304/3 l 6L Stainless steel excellent corrosion resistance no porosity
• The Valve is constructed to the highest specification, thus ensuring optimum level of hygiene and cleanliness by nature of its design.

TECHNICAL INFORMATIONS

• Maximum Pressure : 10 bar.
• Maximum Working Pressure : 4 bar.
• Maximum Test Pressure : 6 bar.
• Maximum Temp : + 90° C.
• Minimum Temp. : – 20° C.

SPECIFICATIONS

• Product Wetted: AISI 304 I 304 L I 316 I 316 L
• Other Steel Parts: AISI 304
• Rubber Part: EPDM, NBR, SILICON & OPTIONAL
• Plastic: PTPF & OPTIONAL
• Finish : SEMI BRIGHT

CONNECTIONS

• Please mention – SMS/IDF/DIN

SIZES

• 25 MM / 38 MM/ 51MM 63 MM / 76 MM/100 MM

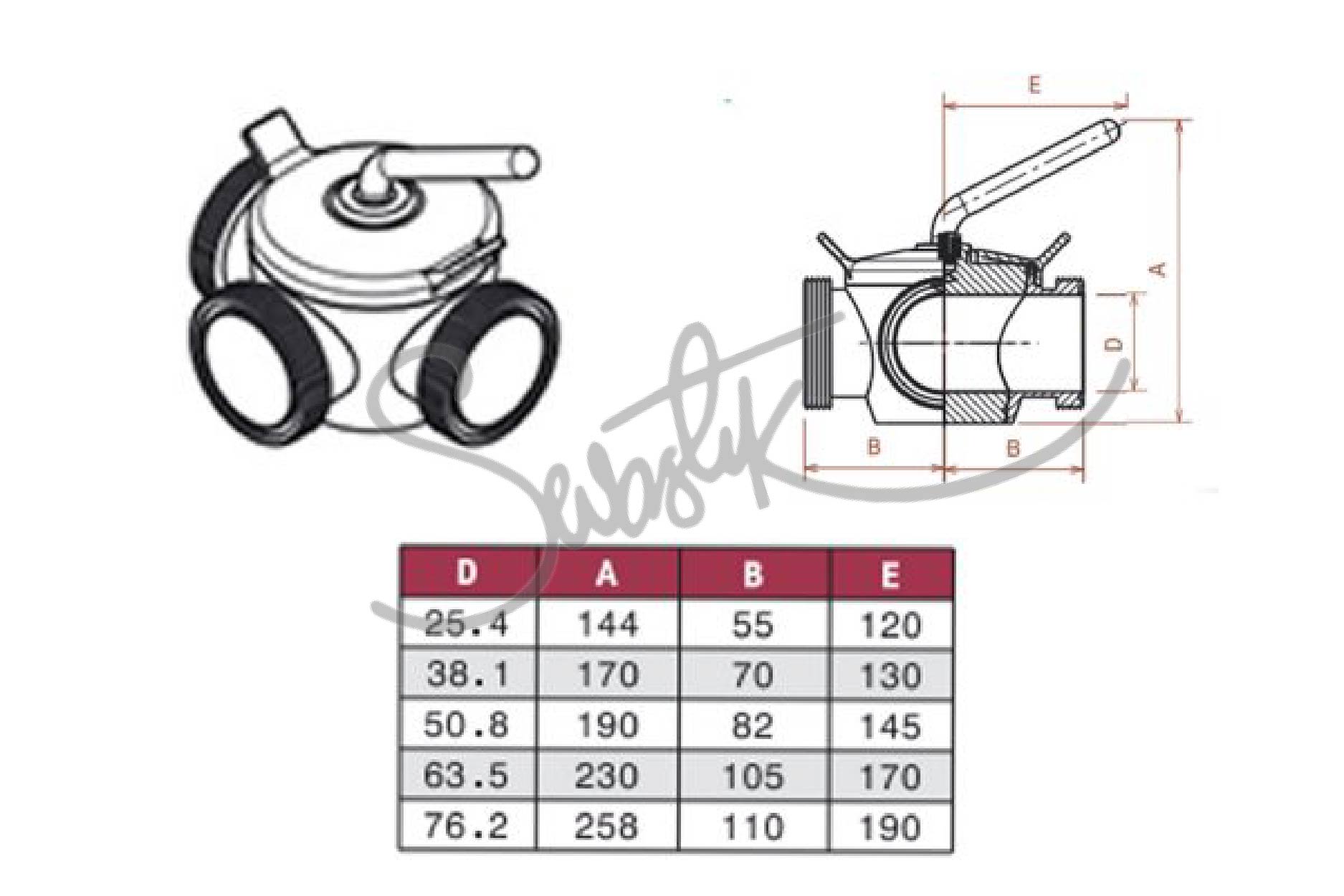

PLUG VALVE TORQUE VALUE
